B-Axis
D200Z design incorporates extreme speeds and precision for tighter tolerances and flawless blends and matches in complex 3-D contoured workpieces. From roughing to high-speed finishing of multifaceted, contoured 3-D geometries, the D200Z boosts productivity with the most competitive processing capabilities for complex dies and molds typically found in the automotive, injection molding, and packaging, medical and optical markets. The speed and precision of the D200Z supply a unique foundation for responsive high-speed cutting and outstanding surface finishes that reduce or eliminate handwork. Its 30,000-rpm spindle and integral direct-drive table provide quick, precise, full 5-axis machining. All of this capability is tied together with Makino’s SGI.5 motion control software for the highest degree of accuracy and quality in the blends and matches of intricate surfaces and 3-D accuracy requirements typical of today’s die, mold, medical and intricate-geometry components.

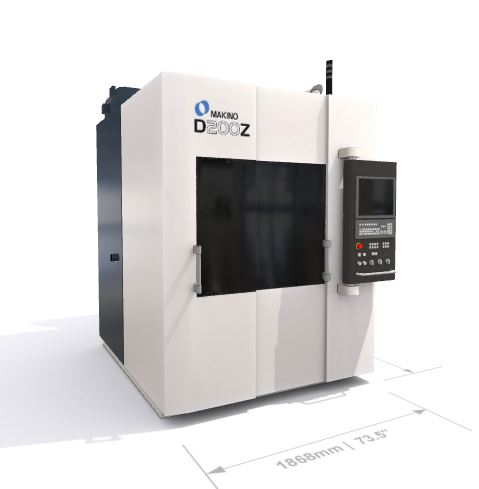

The Makino D200Z 5-axis vertical machining center conquers the complexities of multifaceted, contoured 3-D geometries with precision, full 5-axis machining capabilities. Its high-precision, high-speed motion control technologies enable manufacturers to maintain the tightest accuracy and quality requirements even during simultaneous 5-axis motion.
Designed with an integral chuck to maximize work-zone volume and load capacity, the D200Z accommodates workpiece sizes up to 300mm in diameter and 210mm tall with weight up to 75 kg. The X, Y and Z axes (350mm, 300mm and 250mm travels, respectively) provide swift movement with rapid traverse and cutting feedrates of 60m/min. The D200Z has also adopted a unique, lightweight B-axis tilting structure with 180 degrees (0 to +180) of tilt capability at 100 rpm. Both the B-axis and rotational C-axis (360 degrees continuous at 150 rpm) feature direct-drive motors for agile, accurate, high-speed, responsive angular and rotational operation.
Wide base castings and core-cooled ballscrews serve as a base platform for all other machine components, enhancing overall process stability. The machine’s 30,000-rpm, HSK-E50 spindle is designed with a high-tech spindle core and jacket cooling system to tightly control thermal growth, deflection and vibration during high-speed machining operations. As a result, the D200Z extends tool life and has exceptional surface finishes even in applications requiring fine tool blends and matches.
With flexible tool capacities and automation capabilities, the D200Z can achieve utilization rates of more than 80% for the highest level of throughput and fastest return on investment.
B-Axis
Tilt - 180° (0 to +180)
C-Axis
Rotary - 360°
Spindle RPM
30,000 - HSK-E50 (Standard)
Rapid Traverse
60 m / min
Cutting Feedrate
60 m / min
Maximum Workpiece Size
300 mm diameter
Maximum Payload
75 kg
ATC Capacity
21
Tool to Tool
4 sec
Maximum Tool Diameter
50 mm / 80 mm (ALL / ADJ)
Maximum Tool Weight
3 kg
