Horizontal 4‑Axis

Reliability, stability and precision deliver peak performance and efficiency for every user.

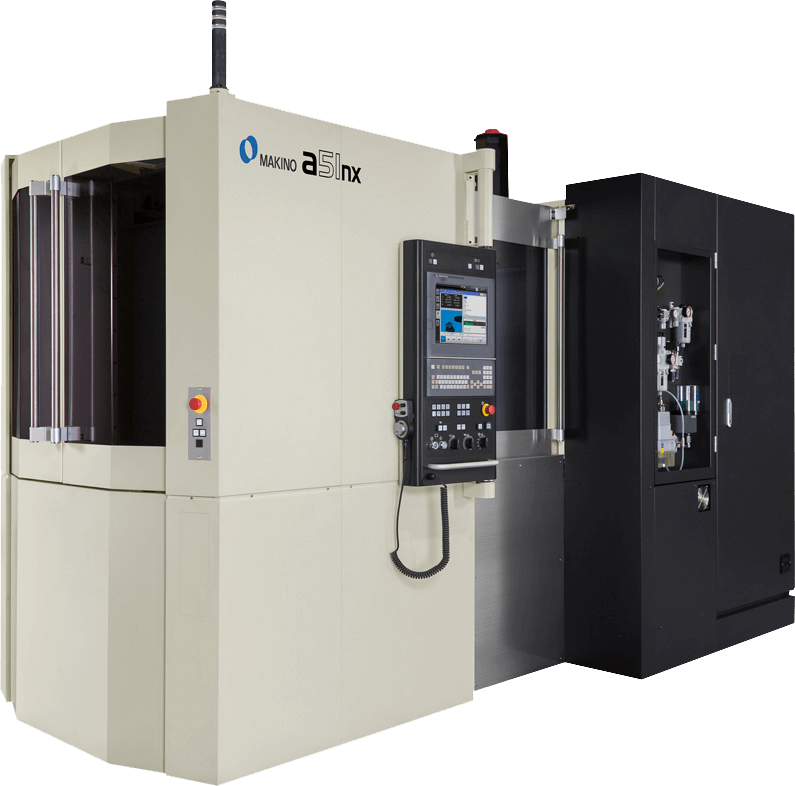

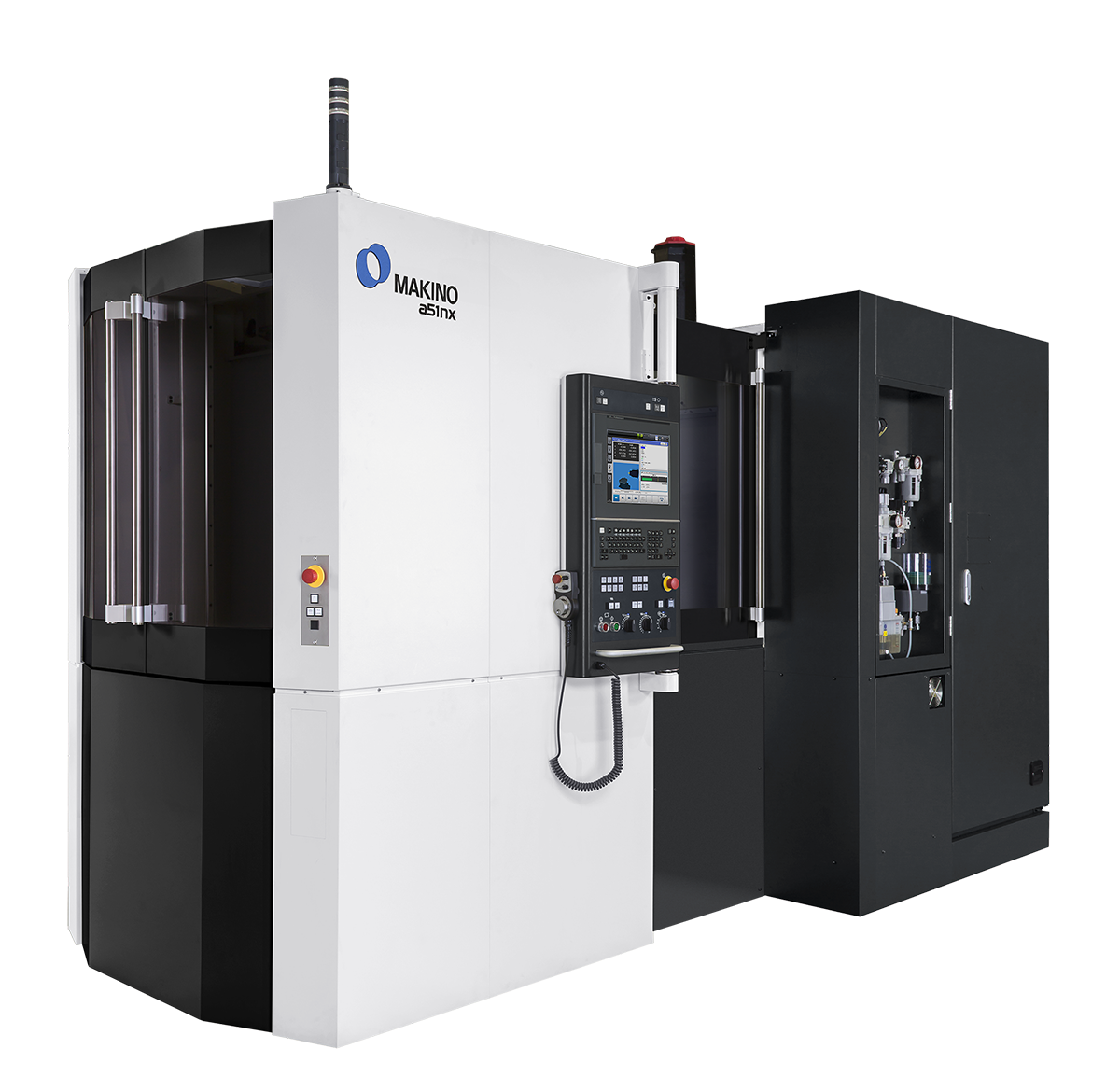

a51nx sil

Take control of production with speed, accuracy and reliability

Makino reliability and easy maintenance mean your machine maintains accuracy and productivity for years, adding value and ROI far beyond any other machine on the market.

Makino leverages the latest technology in every machine. Patented technologies in our high-speed, high-performance spindles give our machines the highest repeatable metal-removal rates. That’s why Makino users lead the industry in the speed and part quality customers demand.

Makino’s 1-Series machines are the top-selling 4-axis horizontals in North America, setting the industry standard. Our full line includes the MCC-Series and MCD-Series for large parts and molds made of steel and other hardened materials.


Get the most out of your machines

Unlock the potential of your processes and eliminate inefficiency in every operation with Makino Engineering Services. Learn how we can guarantee cycle times and lower your cost per part.
Contact Us

a1-Series (400 mm)

Pallet:

400 mm

15.75"

X:

560 mm

22.0"

Y:

640 mm

25.2"

Z:

640 mm

25.2"

Rapid Traverse:

60,000 mm/min

2,362 ipm

Maximum Workpiece:

ø630mm x 900mm

ø24.8" x 35.4"

Spindle Taper:

BT40 (HSK-A63 opt)

CAT40 (HSK-A63 opt)

1-Series (400 mm)

Pallet:

15.75 x 15.75

X:

560 mm

22.0

Y:

640 mm

25.2

Z:

640 mm

25.2

Rapid Traverse:

60,000 mm/min

2,362 ipm

Maximum Workpiece:

ø630 mm x 900 mm

ø24.8" x 35.4"

Spindle Taper:

BT40 (HSK-A63)

1-Series (500 mm)

Pallet:

500 x 500mm

19.7" x 19.7"

X:

730mm

28.7"

Y:

650mm std (730mm opt)

25.6" std (28.7" opt)

Z:

800mm

31.5"

Rapid Traverse:

60,000mm/min

2,362ipm

Maximum Workpiece:

ø800mm x 1,000mm

ø31.5" x 39.4"

Spindle Taper:

BT40 (HSK-A63)

40 (HSK-A63)

a1-Series (500 mm)

Pallet:

500 x 500 mm

19.7" x 19.7"

X:

800mm

31.5"

Y:

750mm

29.5"

Z:

830mm

32.7"

Rapid Traverse:

(X / Y) 50,000 mm/min, (Z) 60,000 mm/min

(X / Y) 1,968 IPM, (Z) 2,362 IPM

Spindle Taper:

BT50 (HSK-100)

50 (HSK-100)

a1-Series (630 mm)

Pallet:

630 mm

24.8"

X:

900 mm

35.4"

Y:

900 mm

35.4"

Z:

1020 mm

40.2"

Rapid Traverse:

50,000 mm/min (Std) , 36,000 mm/min (High Torque)

1,968 in/min (Std) , 1,417 in/min (High Torque)

Maximum Workpiece:

1,000 mm ø x 1,300 mm

39.4" ø x 51.2"

Spindle Taper:

BT50 (HSK100)

50 (HSK100)

1-Series (800 mm)

Pallet:

800 x 1,000 mm

31.5" x 39.4"

X:

1,520 mm

59.8"

Y:

1,250 mm

49.2"

Z:

1,350 mm

53.1"

Rapid Traverse:

50,000 mm/min

1,969 ipm

Maximum Workpiece:

ø1,500 x 1,500 mm

ø59" x 59"

Spindle Taper:

BT50 (HSK100)

50 (HSK100)

a1-Series (1000mm)

Pallet:

1,000mm x 1,000mm (Optional 1,250 x 1,000mm)

39.4" x 39.4" (Optional 49.2" x 39.4")

X:

1,900mm

74.8"

Y:

1.600mm

63.0"

Z:

1,700mm

66.9"

Rapid Traverse:

54,000 mm/min

2,126 IPM

Maximum Workpiece:

ᴓ2,100mm x 1,800mm

ᴓ82.7" x 70.9"

J/JA-Series

Pallet:

400 mm

15.7"

X:

630mm

24.8"

Y:

550mm

21.7"

Z:

550mm

21.7"

Rapid Traverse:

60,000 mm/min

2,362 in/min

Maximum Workpiece:

710mm ᴓ X 730mm (see drawing)

27.9" ᴓ X 28.7" (see drawing)

Spindle Taper:

HSK-A50

HSK-A50

Table:

Φ320 mm

X:

750/400 mm

Y:

560/400 mm

Z:

500/500 mm

Rapid Traverse:

75000 mm/min

Maximum Workpiece:

Φ750 × 1030 / Φ600 × 770 mm (conditional)

Spindle Taper:

HSK-A50

Table:

Φ400 mm

X:

750 mm

Y:

560 mm

Z:

500 mm

Rapid Traverse:

75000 mm/min

Maximum Workpiece:

Φ790 × 740 mm (conditional)

Spindle Taper:

HSK-A63

MCC-Series

Pallet:

2200 x 1000 mm

86.6" x 39.4"

X:

2000 mm

78.7"

Y:

1350 mm

53.1"

Z:

1000 mm

39.4"

Rapid Traverse:

16000 mm/min

630 ipm

Maximum Workpiece:

2500 x 1100 x 1700 mm

98.4" x 43.3" x 66.9"

Spindle Taper:

50 (HSK100)

50 (HSK100)

Pallet:

2900 x 1000 mm

114" x 39"

X:

2500 mm

98.4"

Y:

1350 mm

53.2"

Z:

1000 mm

39.4"

Rapid Traverse:

16000 mm/min

630 in/min

Maximum Workpiece:

3300 x 1150 x 1900 mm

129.9" x 45.3" x 74.8"

Spindle Taper:

50 (HSK100)

50 (HSK100)

Pallet:

3000 x 1600 mm

118" x 63"

X:

2500 mm

98.4"

Y:

1600 mm

63.0"

Z:

1300 mm

51.2"

Rapid Traverse:

16000 mm/min

630 in/min

Maximum Workpiece:

3000 x 1800 x 1900 mm

118.1" x 70.9" x 74.8"

Spindle Taper:

50 (HSK100)

50 (HSK100)

Pallet:

3000 x 1600 mm

118" x 63"

X:

3000 mm

118.1"

Y:

1800 mm

70.9"

Z:

1500 mm

59.1"

Rapid Traverse:

16000 mm/min

630 in/min

Maximum Workpiece:

3000 x 1800 x 1900 mm

118.1" x 70.9" x 74.8"

Spindle Taper:

50 (HSK100)

50 (HSK100)

N-Series

Pallet:

300 mm ø

11.8" ø

X:

300 mm

11.8"

Y:

300 mm

11.8"

Z:

230 mm

9.1"

Rapid Traverse:

42,000 mm/min (X&Y), 56,000 mm/min (Z)

1,653 ipm (X&Y), 2,205 ipm (Z)

Maximum Workpiece:

400 mm ø x 400 mm

15.75" ø x 15.75"
