Table:
EDAF2-FH
With a focus on high-precision small hole drilling and excellent edge quality, these also have the flexibility to execute standard ram EDM operations.

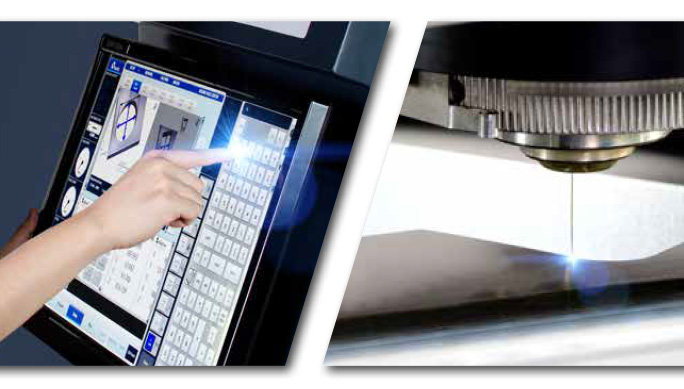

Makino EDMs stand apart with the intuitive Hyper-i control system, a streamlined and efficient interface that helps you get work done faster with fewer errors. A high definition 24” touch screen functions like a tablet, so operators of all skill levels have digital user manuals, help functions, and video training tutorials at their fingertips. You’ll improve user capability and productivity while reducing the need for training and classes.
All models use a stationary work table design and a 3-sided rise and fall drop tank for easy automation and enhanced productivity.
With pinpoint sub-micron precision and outstanding surface finish, these are ideal for small electronics and micromachining applications. Built on the EDAC-1 machine platform, the machine can perform ultra-high precision ram EDM operations as well as small hole drilling.
With a focus on high-precision small hole drilling and excellent edge quality, these also have the flexibility to execute standard ram EDM operations.

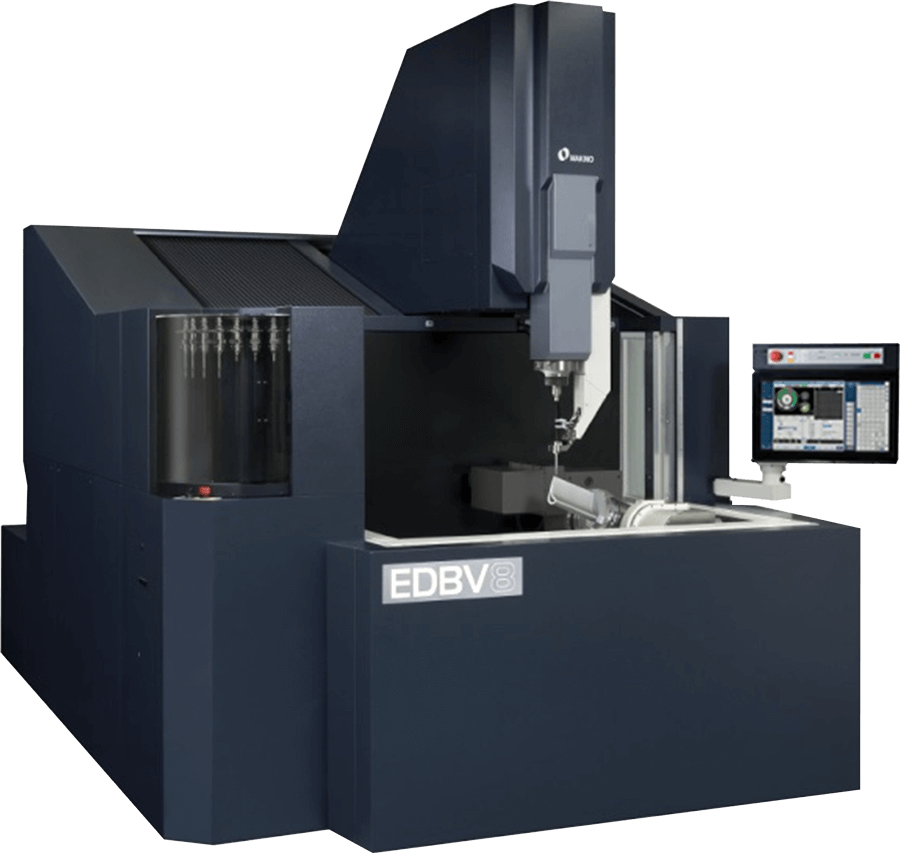

Designed for high-volume production these precise machines achieve the fastest speeds with multi-axis contour machining to produce shaped hole features common to turbine engine components.
Table:
X:
350 mm
Y:
250 mm
Z:
350 mm
Rapid Traverse:
5 m/min
Maximum Workpiece:
Table:
700 x 500 mm
X:
450 mm
Y:
350 mm
Z:
350 mm
Rapid Traverse:
5 m/min
Table:
Rotary Table - A: 360° / B: -110/+30°
X:
370 mm
Y:
270 mm
Z:
500 mm
Rapid Traverse:
5 m/min
Table:
Rotary Table - A: 360° / B: -110/+30°
X:
800 mm
Y:
600 mm
Z:
500 mm (750 mm)
Rapid Traverse:
5 m/min
Table:
350 x 250 mm
X:
220 mm
Y:
180 mm
Z:
300 mm
